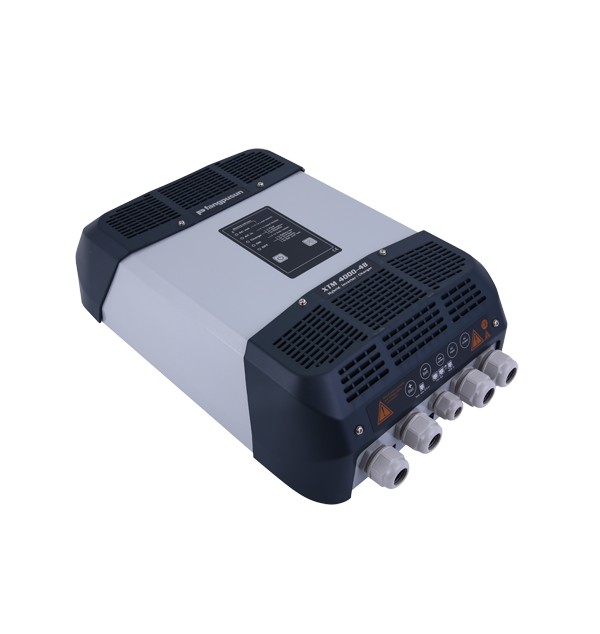

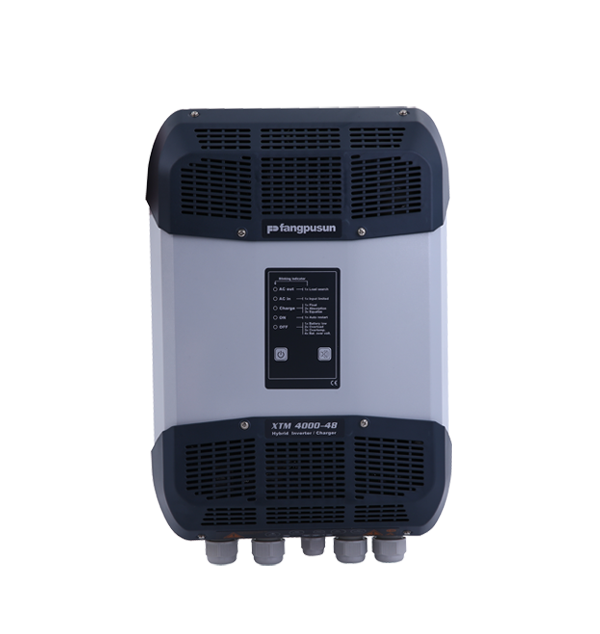

XTM 1500-12,XTM 2000-12,XTM 2400-24,XTM3500-24,XTM2600-48,XTM4000-48
The basic functions of the combined inverters Fangpusun Xtender are th inverter, the battery charger, the switching function and the support of external sources of alternating current. These functions can be combine and contolled fully automatically. The inverters offer outstanding user-friendliness and very good exploitation of the energy available.
All the settings of the Fangpusun Xtender can be remote controlle . When a software with new functions is available, it can be loaded into the system, so the Fangpusun Xtender always stays up to date. Several Fangpusun Xtender can be connected in parallel or to form a three-phase system. That means that up to nine Fangpusun Xtender can work together.
Multifunction contacts
These potential-free contacts can be programmed for many differen applications. They can react to any event outside or inside of the inverter (grid availability, battery voltage, fault message ... They can also be pro rammed on a timer or can be switched on during particular times (at night, at the weekend .. In this way, they can serve to start up a generator, to witch off less important loads, to signal a fault, to charge battries depending on the situation, etc.
Smart-boost function
With the smart-boost function, the output of another source of alternat ng current, such as a power generator or a charger connection, can be increased;
even when special loads are being used (inductive, asymmetric, with hi h switch-on current). It is also possible to combine the Fangpusun Xtender with almost all inverters which are already present in order to increase the available output.

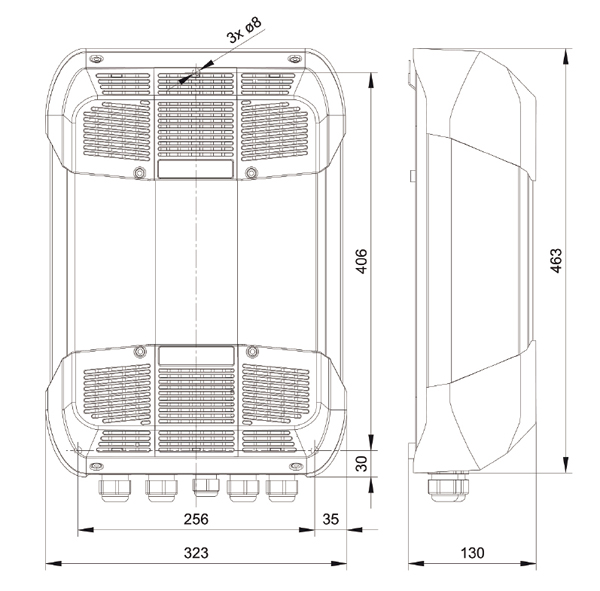

Overall dimension
Product features
True sine wave voltage
Excellent overload capabilities
Battery protection
Adjustable integrated battery charger
Multistage programmable battery charger with PFC
Automatic load detection
Standby load detection adjustable over a wide range, starting from a low value
Parallel connectable
relability
Can be used as a back-up system or uninterruptible power supply (UPS)
Multifunction contact
Adjustable power sharing
Reliable and noiseless with any kind of load
Support of sources of alternating current (Smart Boost)
Automatic support for peak loads (Power Shaving)
Ultra-fast transfer relay
High efficiency
Control by digital signal processor (DSP)
Electronic protection functions
Deep discharge protection
Battery overvoltage shutdown
Short circuit protection
Overtemperature and overload protection
Reverse polarity protection by intemal fuse (except Fangpusun Xtender XTH 3000)
Acoustic alarm at deep discharge or overheating
Displays
5 LEDs show operating states
Operation
Main switch
Adjustable load detection
Options
Type with 115 V 1 60 Hz (except Fangpusun Xtender XTM 4000-48)
Model with protective lacquered mainboard
Certificates
Compliant with European Standards (CE)
RoHS compliant
Made in China
Accessories
Remote control and display Fangpusun RCC-02
Remote control and display Fangpusun RCC-03
Fangpusun X-Connect system
Battery temperature sensor Fangpusun BTS-01
Integrated cooling unit ECF-01
Communications cable
Fangpusun BSP-500/1200

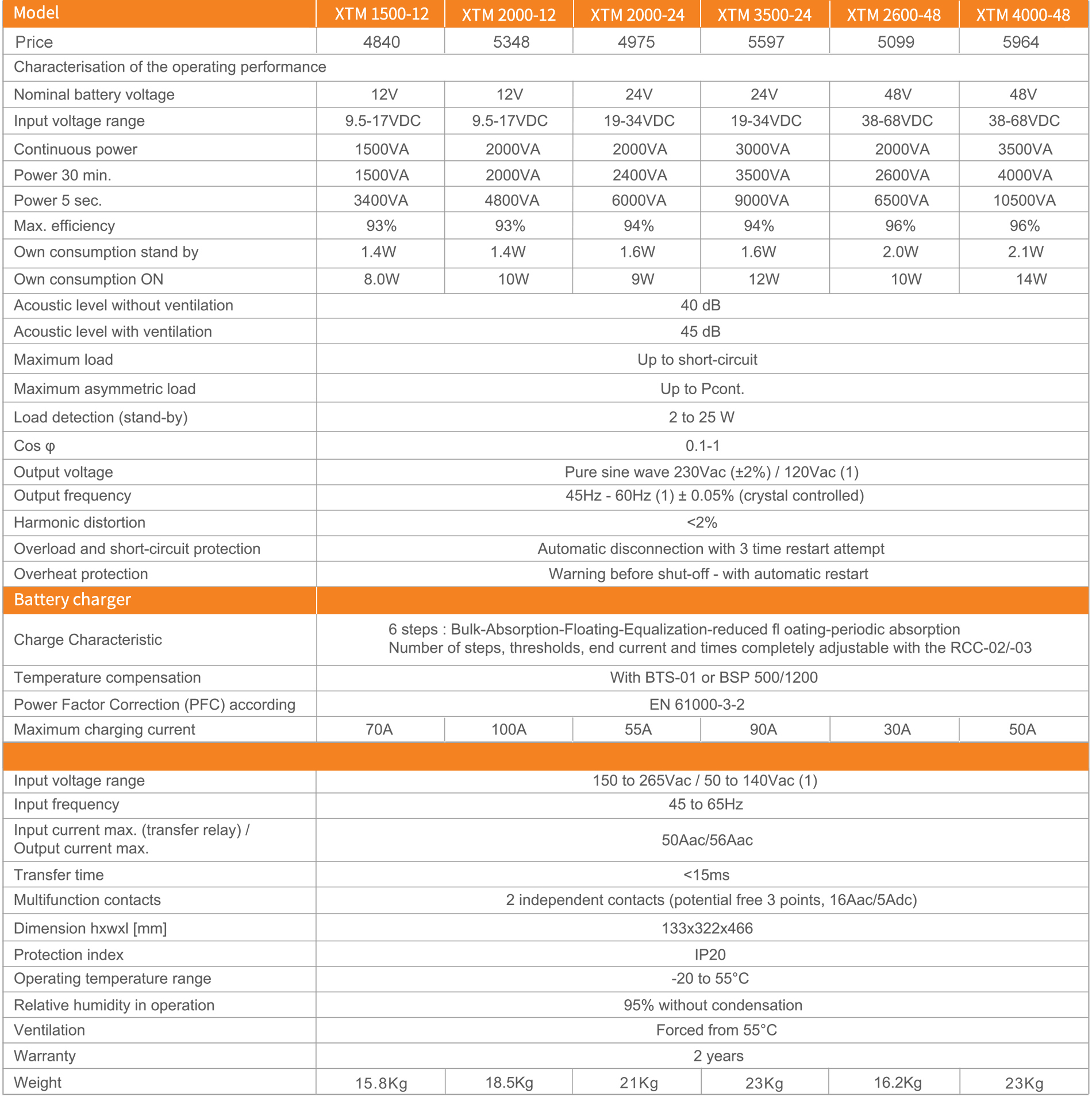

Technical data
